Aluflam’s frames are constructed from thermally broken narrow aluminum extrusions filled with a proprietary fire blocking material.
Features and benefits include:
- Clean, sharp lines of narrow extruded aluminum framing
- Barrier to radiant heat
- Energy efficient
- Multitude of finish options
- Factory finished and fabricated completed before delivery
60 Minute Fire Resistive Openings
 |
 |
 |
 |
|
| Product Series | AF85 | AW50 | AW50D | AW64 |
|---|---|---|---|---|
| Sightline | 2-7/16 in | 2 in | 2 in | 2-1/2 in |
| System Depth | 3-9/16 in | 5-1/8 - 5-3/4 in | 7-5/8 - 8-1/8 in | 2-1/2 x 7-1/2 in |
| Frame Weight | 4.8 lbs/ft | 4.2 lbs/ft | 4.9 lbs/ft | 6.1 lbs/ft |
| Wind Load Resistance (Ixx value) | 2.458 | 2.578 | 9.149 | 10.554 |
| Reinforcing Options | n/a | n/a | ||
| Test standard | UL263 / ASTM E119 / NFPA 251 | UL263 / ASTM E119 / NFPA 251 | UL263 / ASTM E119 / NFPA 251 | UL263 / ASTM E119 / NFPA 251 |
| True Aluminum Framing | ||||
| Glass Plane | Center | Front | Front | Front |
| Glazing Installation | Inside | Outside | Outside | Outside |
| Finishes Available | Anodize, Powder Coat, Polymer Finish | Anodize, Powder Coat, Polymer Finish | Anodize, Powder Coat, Polymer Finish | Anodize, Powder Coat, Polymer Finish |
| Butt Joint Glazing Options | ||||
| Simulated SSG Option | - |

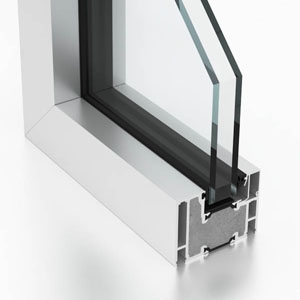

AF85 Series Windows & Vision Wall
Aluflam’s fixed storefront window frames are constructed from thermally broken narrow aluminum extrusions filled with a proprietary fire blocking material.
Frame Section: 2-1/2 x 3-3/8 in
Frame weight: 4.8 lbs/ft
Contraflam 60 is a clear multi-chamber fire-resistive glass for interior applications – UL listed for up to 60 minutes fire rating. It is made of tempered safety glass, sealed to be completely moisture-resistant, with internal chambers filled with an environmentally friendly, transparent and UV-stable alkaline silicate based chemical mixture. In the event of fire, these intumescent interlayers expand as opaque foam providing necessary heat insulating properties. Contraflam 60 meets CPSC 16CFR 1201-CAT II impact safety rating. Contraflam 60 can be combined into an IGU with a full range of insulating glass material options for exterior applications.
Contraflam Structure 60 is a clear multi-chamber fire-resistive glass for interior butt-joint applications – UL listed for up to 60 minutes fire rating. Several glass units are installed side-by-side with silicone butt joints for a continuous glass wall appearance. Each unit is made of tempered safety glass, sealed to be completely moisture-resistant, with internal chambers filled with an environmentally friendly, transparent and UV-stable alkaline silicate based chemical mixture. In the event of fire, these intumescent interlayers expand as opaque foam providing necessary heat insulating properties. Contraflam Structure 60 meets CPSC 16CFR 1201-CAT II impact safety rating.
REFERENCES:
- architectural details – DWG, PDF
- 3-part specification
- installation manual
- UL approvals
- data sheet
- mullion span chart – AF85
| Product Type | 60 min Window / Wall | 60 min Butt-Joined Wall |
|---|---|---|
| Designation | AF85W60 | AF85WB60 |
| Install in interior / exterior wall | Interior / Exterior | Interior |
| Sightline | 2-7/16 in | 2-7/16 in |
| System Depth | 3-9/16 in | 3-9/16 in |
| Max. exposed glass area (per lite) | 4,456 in2 | 7,574 in2 |
| Max. exposed glass width (per lite) | 95 in | 95 in |
| Max. exposed glass heigth (per lite) | 95 in | 138-1/2 in |
| Glazing | Contraflam 60 | Contraflam Structure 60 |
| Glass Marking | W-60 | W-60 |
| Butt Joint Glazing | n/a | |
| Glass thickness | 1 in (1-9/16 for IGU) | 1-1/4 in |
| Glass weight | 10.3 lbs/ft2 (14.9 for IGU) | 14 lbs/ft2 |

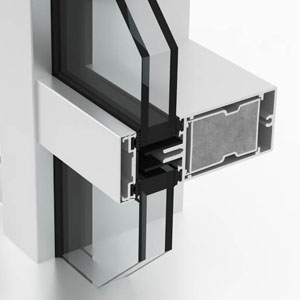

AW50 Series Curtain Wall
Aluflam curtain walls are tested and approved to North American fire standards, and can be integrated with Aluflam’s fire-rated storefront doors.
Frame Section: 2 x 5-3/16 in
Frame weight: 4.2 lbs/ft
Contraflam 60 is a clear multi-chamber fire-resistive glass for interior applications – UL listed for up to 60 minutes fire rating. It is made of tempered safety glass, sealed to be completely moisture-resistant, with internal chambers filled with an environmentally friendly, transparent and UV-stable alkaline silicate based chemical mixture. In the event of fire, these intumescent interlayers expand as opaque foam providing necessary heat insulating properties. Contraflam 60 meets CPSC 16CFR 1201-CAT II impact safety rating. Contraflam 60 can be combined into an IGU with a full range of insulating glass material options for exterior applications.
Contraflam Structure 60 is a clear multi-chamber fire-resistive glass for interior butt-joint applications – UL listed for up to 60 minutes fire rating. Several glass units are installed side-by-side with silicone butt joints for a continuous glass wall appearance. Each unit is made of tempered safety glass, sealed to be completely moisture-resistant, with internal chambers filled with an environmentally friendly, transparent and UV-stable alkaline silicate based chemical mixture. In the event of fire, these intumescent interlayers expand as opaque foam providing necessary heat insulating properties. Contraflam Structure 60 meets CPSC 16CFR 1201-CAT II impact safety rating.
| Product Type | 60 min Window / Wall | 60 min Window / Wall | 60 min Butt-Joined Wall |
|---|---|---|---|
| Designation | AW50W60 | AW50W60 | AW50WB60 |
| Install in interior / exterior wall | Interior | Exterior | Interior |
| Sightline | 2 in | 2 in | 2 in |
| System Depth | 5-1/8 in | 5-3/4 in | 5-1/2 in |
| Max. exposed glass area (per lite) | 4,996 in2 | 4,996 in2 | 7,574 in2 |
| Max. exposed glass width (per lite) | 94-1/2 in | 94-1/2 in | 94-1/2 in |
| Max. exposed glass heigth (per lite) | 94-1/2 in | 94-1/2 in | 138-1/2 in |
| Glazing | Contraflam 60 | Contraflam 60 IGU | Contraflam Structure 60 |
| Glass Marking | W-60 | W-60 | W-60 |
| Butt Joint Glazing | - | - | |
| Glass thickness | 1 in | 1-9/16 in | 1-1/4 in |
| Glass weight | 10.3 lbs/ft2 (14.9 for IGU) | 14.9 lbs/ft2 | 14 lbs/ft2 |

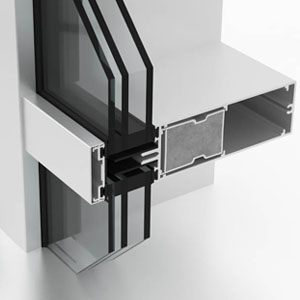

AW50 Deep Series Curtain Wall
Aluflam curtain walls are tested and approved to North American fire standards, and can be integrated with Aluflam’s fire-rated storefront doors.
Frame Section: 2 x 7-5/8 in
Frame weight: 4.9 lbs/ft
60 Minute Glazing | 60 Minute Glazing IGU
Contraflam 60 is a clear multi-chamber fire-resistive glass for interior applications – UL listed for up to 60 minutes fire rating. It is made of tempered safety glass, sealed to be completely moisture-resistant, with internal chambers filled with an environmentally friendly, transparent and UV-stable alkaline silicate based chemical mixture. In the event of fire, these intumescent interlayers expand as opaque foam providing necessary heat insulating properties. Contraflam 60 meets CPSC 16CFR 1201-CAT II impact safety rating. Contraflam 60 can be combined into an IGU with a full range of insulating glass material options for exterior applications.
Contraflam Structure 60 is a clear multi-chamber fire-resistive glass for interior butt-joint applications – UL listed for up to 60 minutes fire rating. Several glass units are installed side-by-side with silicone butt joints for a continuous glass wall appearance. Each unit is made of tempered safety glass, sealed to be completely moisture-resistant, with internal chambers filled with an environmentally friendly, transparent and UV-stable alkaline silicate based chemical mixture. In the event of fire, these intumescent interlayers expand as opaque foam providing necessary heat insulating properties. Contraflam Structure 60 meets CPSC 16CFR 1201-CAT II impact safety rating.
| Product Type | 60 min Window / Wall | 60 min Window / Wall | 60 min Butt-Joined Wall |
|---|---|---|---|
| Designation | AW50DW60 | AW50DW60 | AW50DWB60 |
| Install in interior / exterior wall | Interior | Exterior | Interior |
| Sightline | 2 in | 2 in | 2 in |
| System Depth | 7-5/8 in | 8-1/8 in | 7-7/8 in |
| Max. exposed glass area (per lite) | 4,996 in2 | 4,996 in2 | 7,574 in2 |
| Max. exposed glass width (per lite) | 94-1/2 in | 94-1/2 in | 94-1/2 in |
| Max. exposed glass heigth (per lite) | 94-1/2 in | 94-1/2 in | 138-1/2 in |
| Glazing | Contraflam 60 | Contraflam 60 IGU | Contraflam Structure 60 |
| Glass Marking | W-60 | W-60 | W-60 |
| Butt Joint Glazing | - | - | |
| Glass thickness | 1 in | 1-9/16 in | 1-1/4 in |
| Glass weight | 10.3 lbs/ft2 | 14.9 lbs/ft2 | 14 lbs/ft2 |

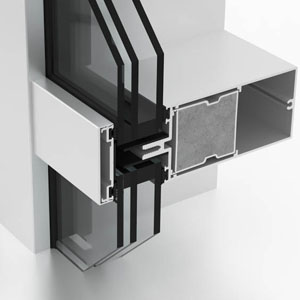

AW64 Series Curtain Wall
AW64 Series | Curtain Wall
Aluflam’s curtain wall frames are constructed from thermally broken narrow aluminum extrusions filled with a proprietary fire blocking material.
Frame Section: 2-1/2 x 7-1/2 in
Frame weight: 6.1 lbs/ft
Contraflam 60 is a clear multi-chamber fire-resistive glass for interior applications – UL listed for up to 60 minutes fire rating. It is made of tempered safety glass, sealed to be completely moisture-resistant, with internal chambers filled with an environmentally friendly, transparent and UV-stable alkaline silicate based chemical mixture. In the event of fire, these intumescent interlayers expand as opaque foam providing necessary heat insulating properties. Contraflam 60 meets CPSC 16CFR 1201-CAT II impact safety rating. Contraflam 60 can be combined into an IGU with a full range of insulating glass material options for exterior applications.
Contraflam Structure 60 is a clear multi-chamber fire-resistive glass for interior butt-joint applications – UL listed for up to 60 minutes fire rating. Several glass units are installed side-by-side with silicone butt joints for a continuous glass wall appearance. Each unit is made of tempered safety glass, sealed to be completely moisture-resistant, with internal chambers filled with an environmentally friendly, transparent and UV-stable alkaline silicate based chemical mixture. In the event of fire, these intumescent interlayers expand as opaque foam providing necessary heat insulating properties. Contraflam Structure 60 meets CPSC 16CFR 1201-CAT II impact safety rating.
References:
- architectural details DWG PDF
- installation manual – 60 min
- datasheet 60 min AW64
- mullion span chart – AW64
| Product Type | 60 min Window / Wall | 60 min Window / Wall | 60 min Butt-Joined Wall |
|---|---|---|---|
| Designation | AW64W60 | AW64W60 | AW64WB60 |
| Install in interior / exterior wall | Interior | Exterior | Interior |
| Sightline | 2-1/2 in | 2-1/2 in | 2-1/2 in |
| System Depth | 6-7/8 in | 7-1/2 in | 7-1/4 in |
| Max. exposed glass area (per lite) | 4,996 in2 | 4,996 in2 | 7,574 in2 |
| Max. exposed glass width (per lite) | 94-1/2 in | 94-1/2 in | 94-1/2 in |
| Max. exposed glass heigth (per lite) | 94-1/2 in | 94-1/2 in | 138-1/2 in |
| Glazing | Contraflam 60 | Contraflam 60 IGU | Contraflam Structure 60 |
| Glass Marking | W-60 | W-60 | W-60 |
| Butt Joint Glazing | - | - | |
| Glass thickness | 1 in | 1-9/16 in | 1-1/4 in |
| Glass weight | 10.3 lbs/ft2 | 14.9 lbs/ft2 | 14 lbs/ft2 |
